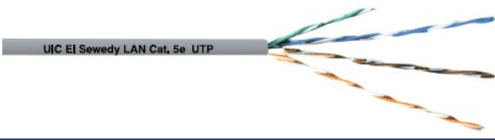

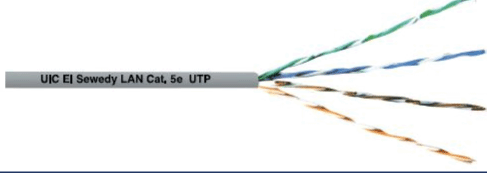

Lan Cables - Unscreened Twisted Pairs (UTP) Applications : The cable is used for Local Area Computer Networks mainly in office or business environments. Engineering Specifications : Type: UTP- Cat 5e Standard: TIA / EIA 568 A, ISO / IEC 11801 Conductor: 24 AWG (0.528mm) solid bare conductor Insulation: Solid polyethylene, diameter 0.95mm Pairs: 2 insulated conductors twisted together, Lay varied to minimize crosstalk Assembly: 4 pairs twisted together Sheath: Flame retardant PVC Grey RAL 7032, 5.86mm nominal diameter Pair Colours: One Pair : blue & white / blue Two Pairs : orange & white / orange Three Pairs : green & white / green Four Pairs : brown & white / brown Bending radius: 8 x O.D during installation Temperature range during operation: +5oC up to + 50oC .

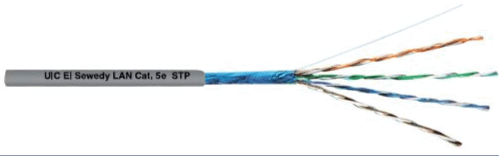

Lan Cables - Foil Screened Twisted Pairs (STP) Applications : The cable is used for Local Area Computer Networks mainly in electrically noisy office or industrial environments. Engineering Specifications : Type: STP- Cat 5e Standard: TIA/ EIA 568 A, ISO / IEC 11801 Conductor: 24 AWG (0.528mm) solid bare conductor Insulation: Solid polyethylene, diameter 1.09mm Pairs: 2 insulated conductors twisted together, lay varied to minimize crosstalk Assembly: 4 pairs twisted together Screen: Aluminium polyester tape and 0.5mm plain or tinned copper drain wire Pair Colours: One Pair : blue & white / blue Two Pairs : orange & white / orange Three Pairs : green & white / green Four Pairs : brown & white / brown Bending radius: 8 x O.D during installation Temperature range during operation: +5oC up to + 50oC .

Lan Cables - Unscreened Twisted Pairs (UTP),(STP) Applications : The cable is used for Local Area Computer Networks where performance greater than that available from category 5 specification is required. Engineering Specifications : Type: UTP- Cat 6 Standard: TIA/ EIA 568 A, ISO / IEC 11801 Conductor: 24 AWG (0.54mm) solid bare conductor Insulation: Solid polyethylene, diameter 0.97mm Pairs: 2 insulated conductors twisted together, Lay varied to minimize crosstalk Assembly: 4 pairs twisted together Sheath: Flame retardant PVC Grey RAL 7032, 5.94mm nominal diameter Pair Colours: One Pair : blue & white / blue Two Pairs : orange & white / orange Three Pairs : green & white / green Four Pairs : brown & white / brown Bending radius: 8 x O.D during installation Temperature range during operation: +5oC up to + 50oC.

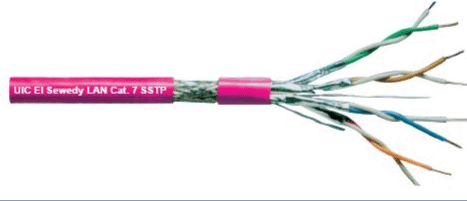

Lan Cables - Shielded, Shielded Twisted Pairs (SSTP) Applications : The cable is used for Local Area Computer Networks mainly in office or business environments. Engineering Specifications : Type: UTP- Cat 5e Standard: TIA / EIA 568 A, ISO / IEC 11801 Conductor: 24 AWG (0.528mm) solid bare conductor Insulation: Solid polyethylene, diameter 0.95mm Pairs: 2 insulated conductors twisted together, Lay varied to minimize crosstalk Assembly: 4 pairs twisted together Sheath: Flame retardant PVC Grey RAL 7032, 5.86mm nominal diameter Pair Colours: One Pair : blue & white / blue Two Pairs : orange & white / orange Three Pairs : green & white / green Four Pairs : brown & white / brown Bending radius: 8 x O.D during installation Temperature range during operation: +5oC up to + 50oC .
