Appliance Cables & Cords - Flexible PVC Cables HO5VV-F Applications : These cables can be used for domestic cooking and heating appliances provided that the cable does not come into contract with the heating elements. Engineering Specifications : Standard:BS 6500 Rated Voltage:300 / 500 V Conductor:Stranded plain annealed copper as per BS - 6360 Insulation:PVC type TI – 2 as per BS - 6746 Color code:Blue, Brown Three cores:Green / yellow, Blue, Brown Four Cores:Green / yellow, Black, Blue, Brown. Assembly:Cores twisted together to form a round cable Sheath:PVC type TM-2 as per BS6746 - white colour Temperature rating:+5oC up to + 70oC.

Appliance Cables & Cords Flexible PVC Cables HO3VV-F Applications : These cables are useful in domestic premises, kitchens, offices or light duties for light portable appliances. Engineering Specifications : Standard:BS 6500 Rated Voltage:300 / 300 V Conductor:Stranded plain annealed copper as per BS- 6360 Insulation:PVC type TI – 2 as per BS - 6746 Color code:Blue, Brown Three cores:Green / yellow, Blue, Brown Four Cores:Green / yellow, Black, Blue, Brown Assembly:Cores twisted together to form a round cable For flat cables, two cores re laid parallel Sheath:PVC type TM-2 as per BS6746 - white colour Temperature rating:-5oC up to + 70oC.

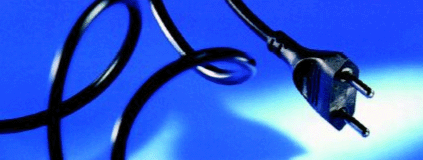

Appliance Cables & Cords Flat Cords Suitable Cables : HO3VV-F : 2 x 0.75 HO5VV-F : 2 x 0.75 HO5VV-F : 2 x 1.0. Engineering Specification : Group: PVC Pug for Safety Class II Voltage rating:300 / 300 V & 300 / 500 V only allowed for double insulated appliances Description: Straight flat plug without earthing contract Material : Glass – reinforced polyamide, black or white colour Permitted current rating: 2.5 Amps AC or 10 Amps AC Permitted Voltage: 250 V AC Pins: 4.0 mm Ø solid metal Pins, nickel – plated.

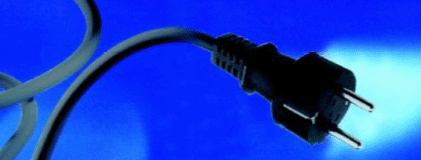

Appliance Cables & Cords Round Cords With Double Earthing System Suitable Cables : HO5VV-F : 3 G 0.75 HO5VV-F : 3 G 1.0 HO5VV-F : 3 G 1.5. Engineering Specification : Group: PVC Plug for Safety Class I Voltage rating: 300 / 300 V & 300 / 500 V Description: 2 - pin angled plug with lateral earthing system Material : PBTP 30% glass – reinforced, anthracite black or white colour Permitted current rating: 10 / 16 Amps AC Pins: 4.8 mm Ø solid metal Pins, nickel – plated .

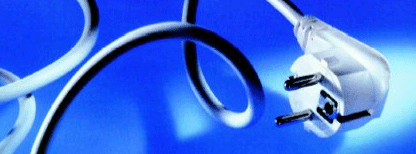

Appliance Cables & Cords Round Cords With Lateral Earthing System Suitable Cables : HO5VV-F : 3 G 0.75 HO5VV-F : 3 G 1.0 HO5VV-F : 3 G 1.5. Engineering Specifications : Group: PVC Plug for Safety Class I Voltage rating: 300 / 300 V & 300 / 500 V Description: 2 - pin angled plug with lateral earthing system Material : PBTP 30% glass – reinforced, anthracite black or white colour Permitted current rating: 10 / 16 Amps AC Pins: 4.8 mm Ø solid metal Pins, nickel – plated .
